The Tachyséma Développement 101 module is a very low profile high density FPGA module including all that is needed for a complete solution for advanced stand alone operation. It includes everything that is needed for a compact solution optimized for advanced data processing and embedded applications.

Its pair of high speed connectors provides the interfaces to the world in the form of 10G SERDES ports, or multi standard discrete digital signals. The LPDDR4 RAM offers a large real time flow buffering, real time swap space capability, and a large application memory.


Product use cases

  • Industrial Network applications

Optimized for custom network applications such as on the fly packet processing thanks to Ethernet links up to 10 Gb/s.

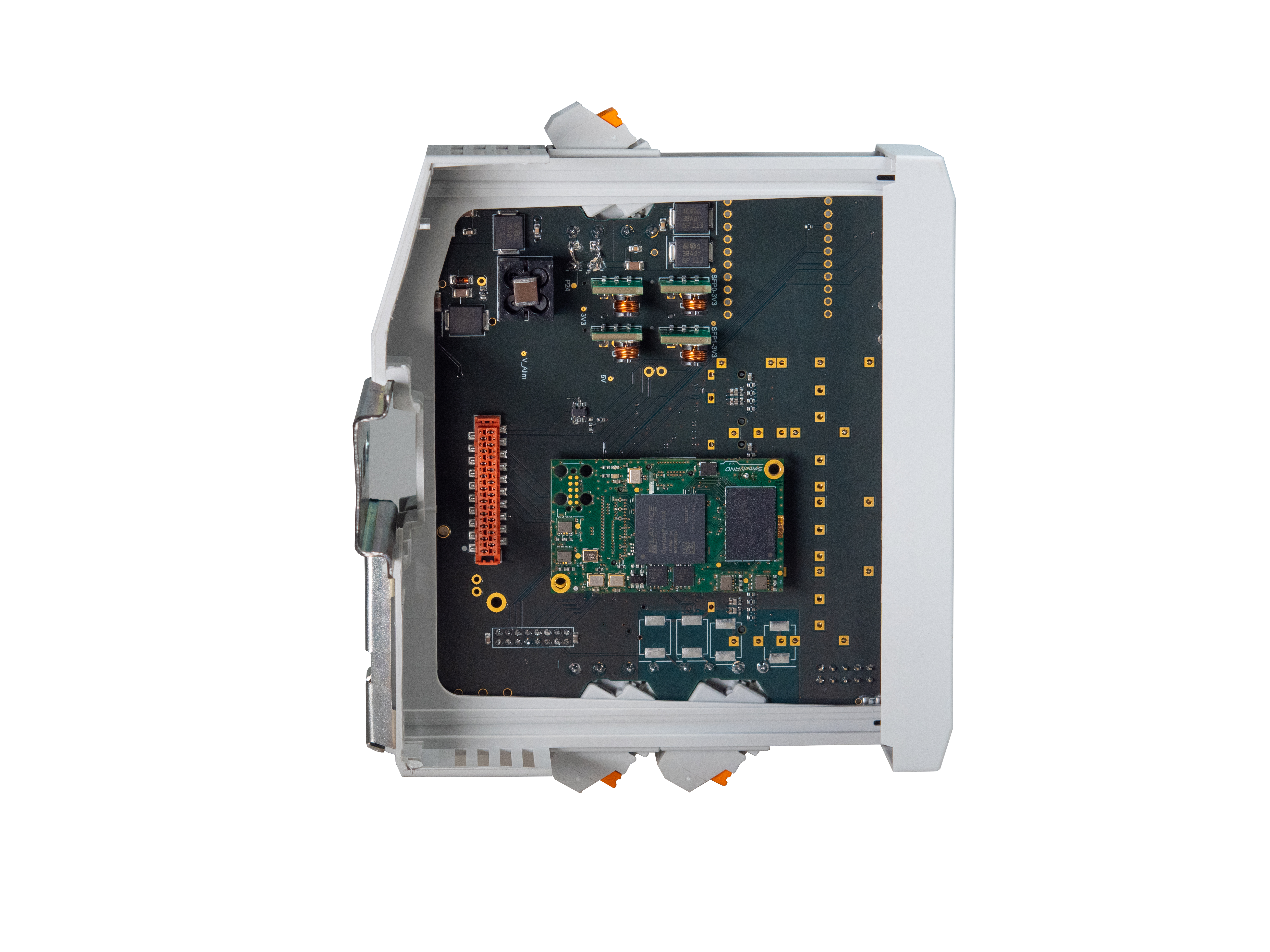

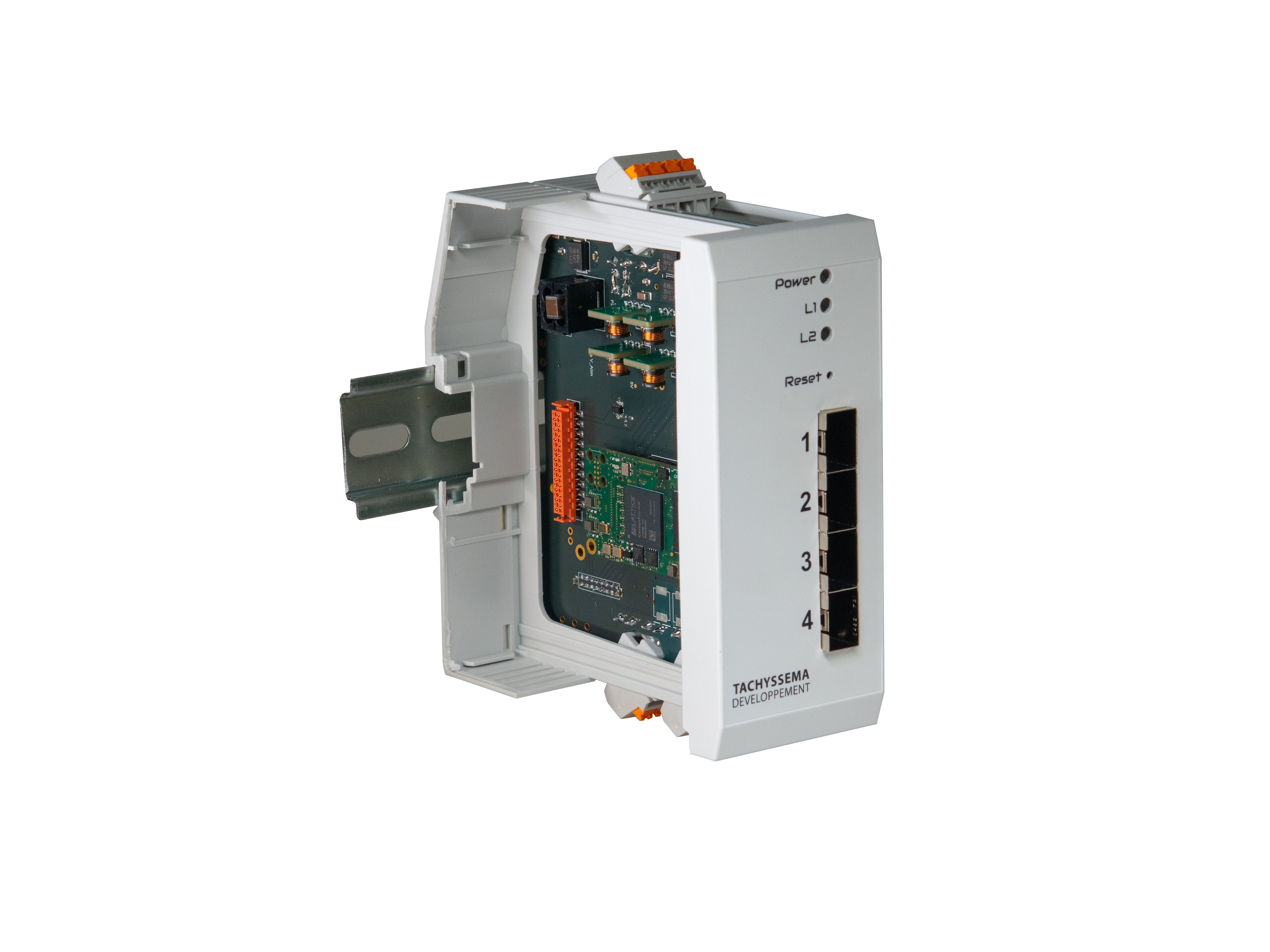

Example of a module application for the implementation of an EMS (Energy Management System)


  • Automatism

Can also be used with Lattice automotive solutions for many applications in the automation world such as electric vehicle supervision, motors control and universal transcoding...

  • AI

The module is compatible with the Lattice SensAI stack which includes everything you need to evaluate, develop and deploy FPGA-based machine learning and/or artificial intelligence solutions.

  • Video applications

Finally, the card can be used for many video processing applications such as stabilization, image rotation, video compression, format conversion, color space change, video mixing, GigE Vision and more...

Product specs

COMPACT MICRO-MODULES FOR REAL TIME PROCESSING• Quick implementation of advanced solutions• Simplification of the design phase and cost reduction• Reduced risk and need for critical part expertise• Reduced production costs, as the module is the only one in advanced technology. Mounted on a low end technology motherboard• Simplification of the logistics, as the BGA and 0402 are pre-assembled on the module• Availability of standard products as well as customization on demand• Very small footprint

FPGA package Certus-Pro NX – cbg256
LFCPNX Density 100K

512 Meg × 32 (2 channels x 16 I/O)

Configuration 2x Flash 64Mb
External 3V3 I/Os PMOD 37
External LVDS I/Os 4
High speed links 4x SERDES up to 10.3Gb/s
Dimensions 27 x 47 mm
Supply Voltage 5V

Product flyer

Price Request

Our products are solely on display on this website. If interested, please fill the contact form below with a valid e-mail to contact and ask our staff about TD-101's pricing and/or further documentation.
